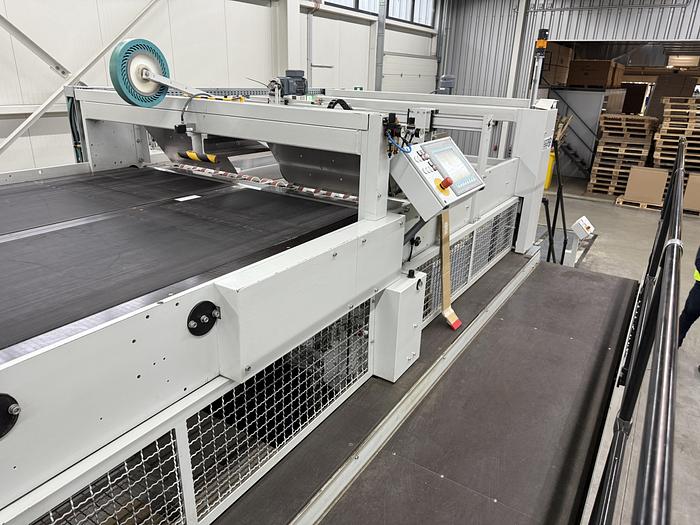

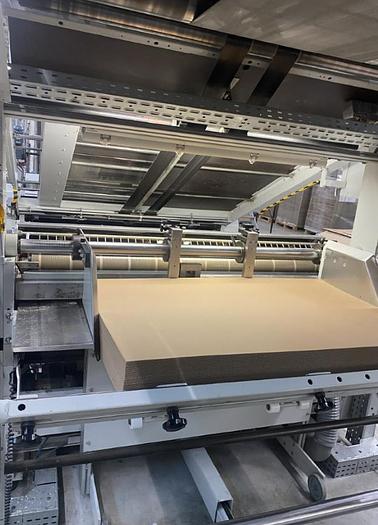

2013 Stock Laminating AHPL7

Stock Laminating "AHPL - On the fly"

Type: AHPL7

Year: 2013

Max.Size: 1620x1620 mm

Min.Size: 500x500 mm

Max.Speed: 10,000 Sh/h with HP mode

Carrier sheet: N-F-E-B-C-EE-BB-EB-BC-Flute up to 7.0 mm

Cardboard: from 0.5 mm

Printing sheets: paper and cardboard 120-800 g/m²

Tolerance: A mode Accuracy mode: +/- 0.5 mm

HP mode Pass-through mode - high performance +/- 1-1.5mm

On the Fly Bow Alignment

stacking discards:

stacking height 1800mm - NON-STOP

stack weight 2000 kg

Sheet feeder:

NON-STOP - scale-shaped arch system

arch outlet height approx. 2750 mm

stacking height 1500mm

stack weight 2000 kg

pull mark left and right

side mark on the left of the B-side (HP mode)

Package turner: Package height 80-120mm in NON-STOP design
