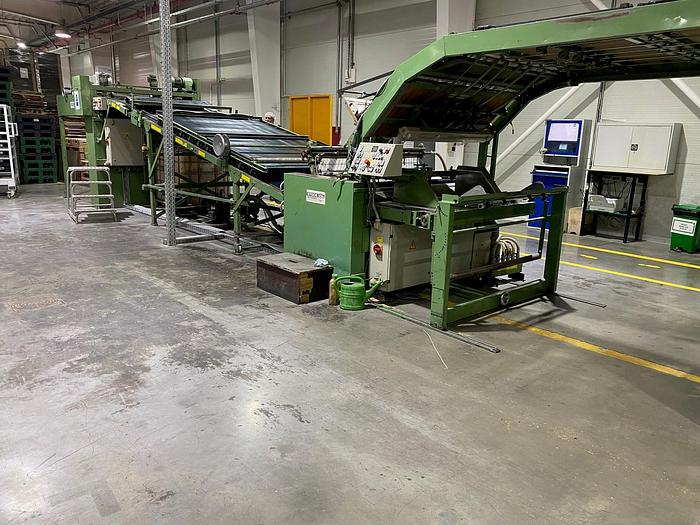

1992 Stock Kaschiermaschine 134R56

Stock Laminating machine

Max. sheet format. 1420x1620mm

Min. sheet format: 500 x 500 mm

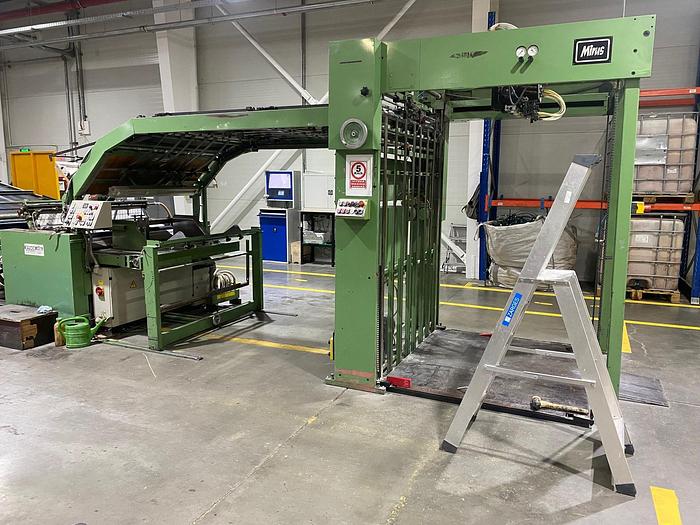

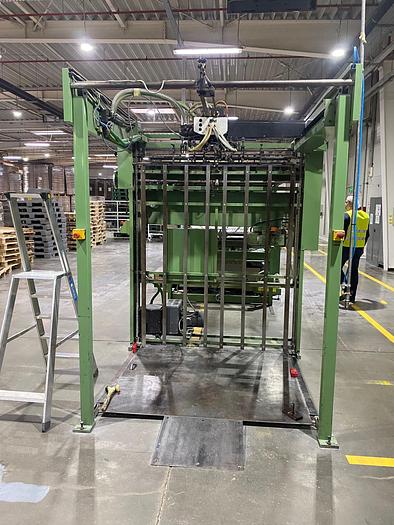

• with MIRUS sheet feeder, type HSII

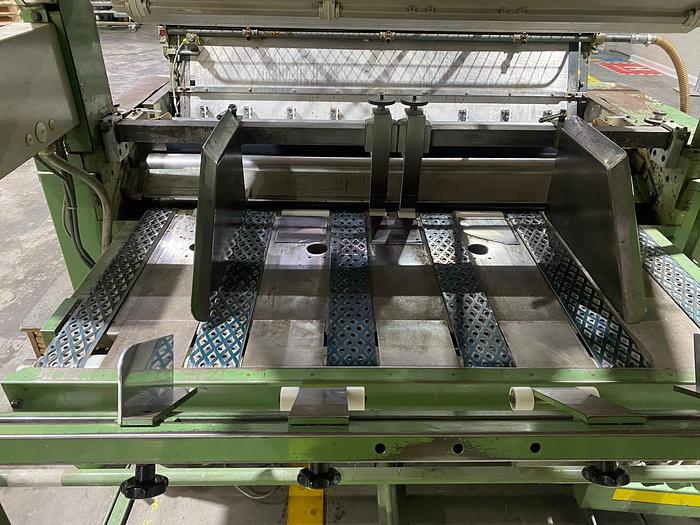

• Suction belt carrier sheet feeder, type 4R

• Press band, type 5

• Package turner (forks) with non-stop device, type 8

• Stacker with non-stop roller carpet, type 7

Technical specifications:

Working width: 1500 mm

Max. sheet width: 1420 mm

Max. arc length: 1640 mm

Lamination tolerances: +/- 1.5 mm

Hmtjp87Qq

Material thickness:

- Carrier material from 0.6 - 7 mm. Single-sided corrugated cardboard only runs through the machine with a standing wave.

- For cardboard of approx. 400 – 500 g/m² an additional needle bar is

necessary.

- Cover sheet of approx. 180 – 400 g/m². Deviations possible depending on material properties.
