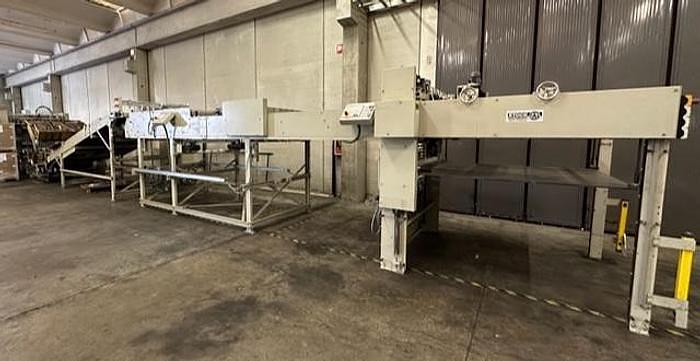

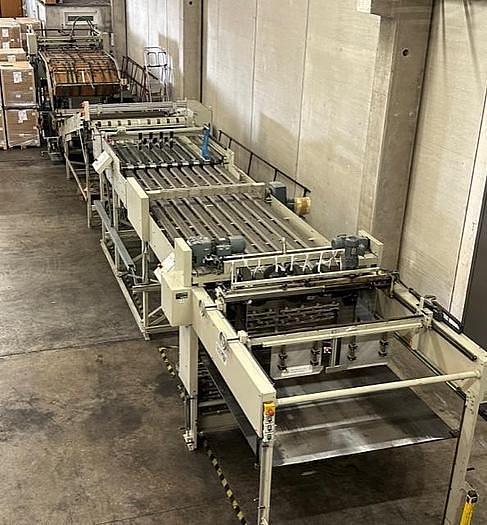

2000 Stock Laminating automatic

STOCK Laminating machine

Max. sheet size. 1420x1620mm

Min. sheet size: 500 x 500 mm

·     with MIRUS sheet feeder, type HSII

·     Suction belt carrier sheet feeder, type 4R

·     Press belt, type 5

·     Package turner (forks) with non-stop device, type 8

·     Stacker with non-stop roller carpet, type 7

Technical specifications:

Working width:                     1500 mm

Max. sheet width:             1420 mm

Max. arc length: 1640 mm

Lamination tolerances:          +/- 1.5 mm

Material thickness:

-        Carrier material from 0.6 - 7 mm. Single-sided corrugated cardboard only runs through the machine with a standing wave.

-        For cardboard of approx. 400 – 500 g/m² an additional needle bar is required.

-        Cover sheet of approx. 180 – 400 g/m². Deviations possible depending on material properties.
